ELF初探

程序示例

参照多方资料做个总结,用下方程序

/*
gcc -c 文件名.c，生成可重定位文件，生成的为可重定位文件，不要直接生成可执行文件
*/

int printf(const char* format, ...);

int global_init_var = 84;
int global_uninit_var;

void func1(int i)
{
    printf("%d\n", i);
}

int main(void)
{
    static int static_var = 85;
    static int static_var2;

    int a = 1;
    int b;
    func1(static_var + static_var2 + a + b);

    return a;
}

elf header

初次学习主要关注 Start of section headers即可，初次旨在弄清楚文件结构

/*
其中指出了节表的开始地址，也指出了节表中元素数量
*/
root@L:/home/l/c++# readelf -h ./elfdemo.o
ELF Header:
  Magic:   7f 45 4c 46 02 01 01 00 00 00 00 00 00 00 00 00
  Class:                             ELF64
  Data:                              2's complement, little endian
  Version:                           1 (current)
  OS/ABI:                            UNIX - System V
  ABI Version:                       0
  Type:                              REL (Relocatable file)
  Machine:                           Advanced Micro Devices X86-64
  Version:                           0x1
  Entry point address:               0x0
  Start of program headers:          0 (bytes into file)
  Start of section headers:          1040 (bytes into file)
  Flags:                             0x0
  Size of this header:               64 (bytes)
  Size of program headers:           0 (bytes)
  Number of program headers:         0
  Size of section headers:           64 (bytes)
  Number of section headers:         14
  Section header string table index: 13/*字符串表的节索引*/

section header（节描述符）

按照本人的理解为section和segment的区别是一个是在文件中，一个是在runtime，本次学习所用实例为可重定向文件，非文件，因此没有program header。

其详细的描述了每一个节的信息。

结构

typedef struct
{
  Elf64_Word	sh_name;		/* Section name (string tbl index) */
  Elf64_Word	sh_type;		/* Section type *//*段的类型（用处）*/
  Elf64_Xword	sh_flags;		/* Section flags *//*标志位*/
  Elf64_Addr	sh_addr;		/* Section virtual addr at execution */
  Elf64_Off	sh_offset;		/* Section file offset *//*文件偏移地址*/
  Elf64_Xword	sh_size;		/* Section size in bytes *//*节长*/
  Elf64_Word	sh_link;		/* Link to another section */
  Elf64_Word	sh_info;		/* Additional section information */
  Elf64_Xword	sh_addralign;		/* Section alignment *//*对齐，若为8，则起始地址除8=0*/
  Elf64_Xword	sh_entsize;		/* Entry size if section holds table *//*项长度，符号表24*/
} Elf64_Shdr;

root@L:/home/l/c++# readelf -S ./elfdemo.o
There are 14 section headers, starting at offset 0x410:

Section Headers:
  [Nr] Name              Type             Address           Offset
       Size              EntSize          Flags  Link  Info  Align
  [ 0]                   NULL             0000000000000000  00000000
       0000000000000000  0000000000000000           0     0     0
  [ 1] .text             PROGBITS         0000000000000000  00000040
       0000000000000062  0000000000000000  AX       0     0     1
  [ 2] .rela.text        RELA             0000000000000000  000002f0
       0000000000000078  0000000000000018   I      11     1     8
  [ 3] .data             PROGBITS         0000000000000000  000000a4
       0000000000000008  0000000000000000  WA       0     0     4
  [ 4] .bss              NOBITS           0000000000000000  000000ac
       0000000000000008  0000000000000000  WA       0     0     4
  [ 5] .rodata           PROGBITS         0000000000000000  000000ac
       0000000000000004  0000000000000000   A       0     0     1
  [ 6] .comment          PROGBITS         0000000000000000  000000b0
       000000000000002c  0000000000000001  MS       0     0     1
  [ 7] .note.GNU-stack   PROGBITS         0000000000000000  000000dc
       0000000000000000  0000000000000000           0     0     1
  [ 8] .note.gnu.pr[...] NOTE             0000000000000000  000000e0
       0000000000000020  0000000000000000   A       0     0     8
  [ 9] .eh_frame         PROGBITS         0000000000000000  00000100
       0000000000000058  0000000000000000   A       0     0     8
  [10] .rela.eh_frame    RELA             0000000000000000  00000368
       0000000000000030  0000000000000018   I      11     9     8
  [11] .symtab           SYMTAB           0000000000000000  00000158
       0000000000000138  0000000000000018          12     8     8
  [12] .strtab           STRTAB           0000000000000000  00000290
       000000000000005a  0000000000000000           0     0     1
  [13] .shstrtab         STRTAB           0000000000000000  00000398
       0000000000000074  0000000000000000           0     0     1
Key to Flags:
  W (write), A (alloc), X (execute), M (merge), S (strings), I (info),
  L (link order), O (extra OS processing required), G (group), T (TLS),
  C (compressed), x (unknown), o (OS specific), E (exclude),
  D (mbind), l (large), p (processor specific)

Symbol table（重要节之一）

其中元素结构为：

/*
1.Symbol name,为符号名所在位置的index，而符号名在字符串表中，会在下面介绍
2.st_info：符号类型和绑定，

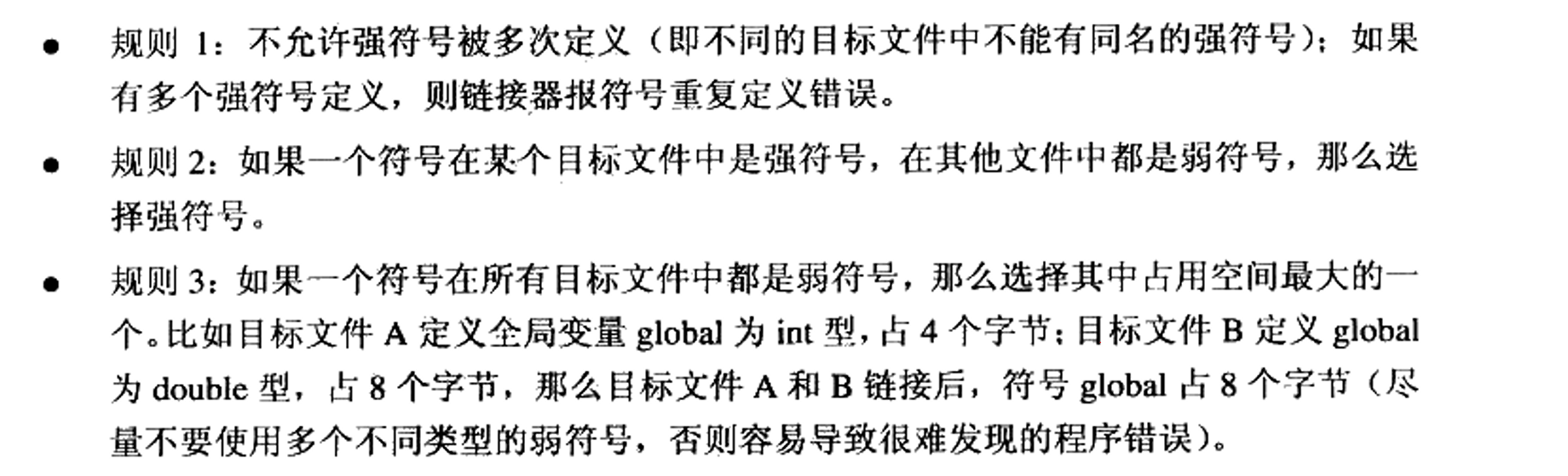

	符号绑定（binding）：表示符号的作用域和链接属性，例如是局部符号还是全局符号，还有弱符号。
	符号类型（type）：表示符号的类型，例如它是一个函数、变量还是某种特殊的符号。
3.st_other，符号可见性，可由符号绑定决定，也可以自定义，决定了是否能被外部引用。
*/
typedef uint32_t Elf64_Word;
typedef uint16_t Elf64_Section;
typedef uint64_t Elf64_Addr;
typedef uint64_t Elf64_Xword;
typedef struct
{
  Elf64_Word	st_name;		/* Symbol name (string tbl index) */
  unsigned char	st_info;		/* Symbol type and binding */
  unsigned char st_other;		/* Symbol visibility */
  Elf64_Section	st_shndx;		/* Section index */
  Elf64_Addr	st_value;		/* Symbol value */
  Elf64_Xword	st_size;		/* Symbol size */
} Elf64_Sym;
一个结构体占：4+2+1+1+8+8=24bytes

String table && Shstrtab

分别用来保存符号表的名称和节表的名称，即symbol name和section name。可通过st_name和sh_name索引来访问。

示例

/*
符号表
*/
root@L:/home/l/c++# readelf -s elfdemo.o

Symbol table '.symtab' contains 13 entries:
   Num:    Value          Size Type    Bind   Vis      Ndx Name
     0: 0000000000000000     0 NOTYPE  LOCAL  DEFAULT  UND
     1: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS elfdemo.c
     2: 0000000000000000     0 SECTION LOCAL  DEFAULT    1 .text
     3: 0000000000000000     0 SECTION LOCAL  DEFAULT    3 .data
     4: 0000000000000000     0 SECTION LOCAL  DEFAULT    4 .bss
     5: 0000000000000000     0 SECTION LOCAL  DEFAULT    5 .rodata
     6: 0000000000000004     4 OBJECT  LOCAL  DEFAULT    3 static_var.1
     7: 0000000000000004     4 OBJECT  LOCAL  DEFAULT    4 static_var2.0
     8: 0000000000000000     4 OBJECT  GLOBAL DEFAULT    3 global_init_var
     9: 0000000000000000     4 OBJECT  GLOBAL DEFAULT    4 global_uninit_var
    10: 0000000000000000    43 FUNC    GLOBAL DEFAULT    1 func1
    11: 0000000000000000     0 NOTYPE  GLOBAL DEFAULT  UND printf
    12: 000000000000002b    55 FUNC    GLOBAL DEFAULT    1 main
 /*
 符号表的hex表示，可以理解其存储的格式
 第一列为索引，注意大端法，一个结构体占24字节，仔细阅读可以理解其与字符串表的对应关系。
 */
root@L:/home/l/c++# readelf -x 11 ./elfdemo.o

Hex dump of section '.symtab':
  0x00000000 00000000 00000000 00000000 00000000 ................
  0x00000010 00000000 00000000 01000000 0400f1ff ................
  0x00000020 00000000 00000000 00000000 00000000 ................
  0x00000030 00000000 03000100 00000000 00000000 ................
  0x00000040 00000000 00000000 00000000 03000300 ................
  0x00000050 00000000 00000000 00000000 00000000 ................
  0x00000060 00000000 03000400 00000000 00000000 ................
  0x00000070 00000000 00000000 00000000 03000500 ................
  0x00000080 00000000 00000000 00000000 00000000 ................
  0x00000090 0b000000 01000300 04000000 00000000 ................
  0x000000a0 04000000 00000000 18000000 01000400 ................
  0x000000b0 04000000 00000000 04000000 00000000 ................
  0x000000c0 26000000 11000300 00000000 00000000 &...............
  0x000000d0 04000000 00000000 36000000 11000400 ........6.......
  0x000000e0 00000000 00000000 04000000 00000000 ................
  0x000000f0 48000000 12000100 00000000 00000000 H...............
  0x00000100 2b000000 00000000 4e000000 10000000 +.......N.......
  0x00000110 00000000 00000000 00000000 00000000 ................
  0x00000120 55000000 12000100 2b000000 00000000 U.......+.......
  0x00000130 37000000 00000000                   7.......
 /*
 字符串表
 */
root@L:/home/l/c++# readelf -x 12 ./elfdemo.o

Hex dump of section '.strtab':
  0x00000000 00656c66 64656d6f 2e630073 74617469 .elfdemo.c.stati
  0x00000010 635f7661 722e3100 73746174 69635f76 c_var.1.static_v
  0x00000020 6172322e 3000676c 6f62616c 5f696e69 ar2.0.global_ini
  0x00000030 745f7661 7200676c 6f62616c 5f756e69 t_var.global_uni
  0x00000040 6e69745f 76617200 66756e63 31007072 nit_var.func1.pr
  0x00000050 696e7466 006d6169 6e00              intf.main.

root@L:/home/l/c++# readelf -x 13 ./elfdemo.o

Hex dump of section '.shstrtab':
  0x00000000 002e7379 6d746162 002e7374 72746162 ..symtab..strtab
  0x00000010 002e7368 73747274 6162002e 72656c61 ..shstrtab..rela
  0x00000020 2e746578 74002e64 61746100 2e627373 .text..data..bss
  0x00000030 002e726f 64617461 002e636f 6d6d656e ..rodata..commen
  0x00000040 74002e6e 6f74652e 474e552d 73746163 t..note.GNU-stac
  0x00000050 6b002e6e 6f74652e 676e752e 70726f70 k..note.gnu.prop
  0x00000060 65727479 002e7265 6c612e65 685f6672 erty..rela.eh_fr
  0x00000070 616d6500                            ame.

关于重定位节

因此是一个可重定位文件缺少外部文件函数的定义，因此需要链接器来重定位，而.rela就是需要重定位的节

此时可以反汇编文件，文件是这样的：仔细观察可以看见call字段地址为00 00 00 00，故需要重定位。

root@L:/home/l/c++# objdump -d elfdemo.o

elfdemo.o:     file format elf64-x86-64


Disassembly of section .text:

0000000000000000 <func1>:
   0:   f3 0f 1e fa             endbr64
   4:   55                      push   %rbp
   5:   48 89 e5                mov    %rsp,%rbp
   8:   48 83 ec 10             sub    $0x10,%rsp
   c:   89 7d fc                mov    %edi,-0x4(%rbp)
   f:   8b 45 fc                mov    -0x4(%rbp),%eax
  12:   89 c6                   mov    %eax,%esi
  14:   48 8d 05 00 00 00 00    lea    0x0(%rip),%rax        # 1b <func1+0x1b>
  1b:   48 89 c7                mov    %rax,%rdi
  1e:   b8 00 00 00 00          mov    $0x0,%eax
  23:   e8 00 00 00 00          call   28 <func1+0x28>
  28:   90                      nop
  29:   c9                      leave
  2a:   c3                      ret

000000000000002b <main>:
  2b:   f3 0f 1e fa             endbr64
  2f:   55                      push   %rbp
  30:   48 89 e5                mov    %rsp,%rbp
  33:   48 83 ec 10             sub    $0x10,%rsp
  37:   c7 45 f8 01 00 00 00    movl   $0x1,-0x8(%rbp)
  3e:   8b 15 00 00 00 00       mov    0x0(%rip),%edx        # 44 <main+0x19>
  44:   8b 05 00 00 00 00       mov    0x0(%rip),%eax        # 4a <main+0x1f>
  4a:   01 c2                   add    %eax,%edx
  4c:   8b 45 f8                mov    -0x8(%rbp),%eax
  4f:   01 c2                   add    %eax,%edx
  51:   8b 45 fc                mov    -0x4(%rbp),%eax
  54:   01 d0                   add    %edx,%eax
  56:   89 c7                   mov    %eax,%edi
  58:   e8 00 00 00 00          call   5d <main+0x32>
  5d:   8b 45 f8                mov    -0x8(%rbp),%eax
  60:   c9                      leave
  61:   c3                      ret

可以观察到重定位之后符号表的变化，主要是变化为装载地址的相对地址：

可以通过gdb来验证

Symbol table '.symtab' contains 41 entries:
   Num:    Value          Size Type    Bind   Vis      Ndx Name
     0: 0000000000000000     0 NOTYPE  LOCAL  DEFAULT  UND
     1: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS Scrt1.o
     2: 000000000000038c    32 OBJECT  LOCAL  DEFAULT    4 __abi_tag
     3: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS crtstuff.c
     4: 0000000000001090     0 FUNC    LOCAL  DEFAULT   16 deregister_tm_clones
     5: 00000000000010c0     0 FUNC    LOCAL  DEFAULT   16 register_tm_clones
     6: 0000000000001100     0 FUNC    LOCAL  DEFAULT   16 __do_global_dtors_aux
     7: 0000000000004018     1 OBJECT  LOCAL  DEFAULT   26 completed.0
     8: 0000000000003dc0     0 OBJECT  LOCAL  DEFAULT   22 __do_global_dtor[...]
     9: 0000000000001140     0 FUNC    LOCAL  DEFAULT   16 frame_dummy
    10: 0000000000003db8     0 OBJECT  LOCAL  DEFAULT   21 __frame_dummy_in[...]
    11: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS elfdemo.c
    12: 0000000000004014     4 OBJECT  LOCAL  DEFAULT   25 static_var.1
    13: 0000000000004020     4 OBJECT  LOCAL  DEFAULT   26 static_var2.0
    14: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS crtstuff.c
    15: 0000000000002110     0 OBJECT  LOCAL  DEFAULT   20 __FRAME_END__
    16: 0000000000000000     0 FILE    LOCAL  DEFAULT  ABS
    17: 0000000000003dc8     0 OBJECT  LOCAL  DEFAULT   23 _DYNAMIC
    18: 0000000000002008     0 NOTYPE  LOCAL  DEFAULT   19 __GNU_EH_FRAME_HDR
    19: 0000000000003fb8     0 OBJECT  LOCAL  DEFAULT   24 _GLOBAL_OFFSET_TABLE_
    20: 0000000000001149    43 FUNC    GLOBAL DEFAULT   16 func1
    21: 0000000000000000     0 FUNC    GLOBAL DEFAULT  UND __libc_start_mai[...]
    22: 0000000000000000     0 NOTYPE  WEAK   DEFAULT  UND _ITM_deregisterT[...]
    23: 0000000000004000     0 NOTYPE  WEAK   DEFAULT   25 data_start
    24: 0000000000004018     0 NOTYPE  GLOBAL DEFAULT   25 _edata
    25: 00000000000011ac     0 FUNC    GLOBAL HIDDEN    17 _fini
    26: 0000000000000000     0 FUNC    GLOBAL DEFAULT  UND printf@GLIBC_2.2.5
    27: 0000000000004000     0 NOTYPE  GLOBAL DEFAULT   25 __data_start
    28: 000000000000401c     4 OBJECT  GLOBAL DEFAULT   26 global_uninit_var
    29: 0000000000000000     0 NOTYPE  WEAK   DEFAULT  UND __gmon_start__
    30: 0000000000004008     0 OBJECT  GLOBAL HIDDEN    25 __dso_handle
    31: 0000000000002000     4 OBJECT  GLOBAL DEFAULT   18 _IO_stdin_used
    32: 0000000000004028     0 NOTYPE  GLOBAL DEFAULT   26 _end
    33: 0000000000001060    38 FUNC    GLOBAL DEFAULT   16 _start
    34: 0000000000004010     4 OBJECT  GLOBAL DEFAULT   25 global_init_var
    35: 0000000000004018     0 NOTYPE  GLOBAL DEFAULT   26 __bss_start
    36: 0000000000001174    55 FUNC    GLOBAL DEFAULT   16 main
    37: 0000000000004018     0 OBJECT  GLOBAL HIDDEN    25 __TMC_END__
    38: 0000000000000000     0 NOTYPE  WEAK   DEFAULT  UND _ITM_registerTMC[...]
    39: 0000000000000000     0 FUNC    WEAK   DEFAULT  UND __cxa_finalize@G[...]
    40: 0000000000001000     0 FUNC    GLOBAL HIDDEN    12 _init
LEGEND: STACK | HEAP | CODE | DATA | WX | RODATA
             Start                End Perm     Size Offset File
    0x555555554000     0x555555555000 r--p     1000      0 /home/l/c++/test
    0x555555555000     0x555555556000 r-xp     1000   1000 /home/l/c++/test
    0x555555556000     0x555555557000 r--p     1000   2000 /home/l/c++/test
    0x555555557000     0x555555558000 r--p     1000   2000 /home/l/c++/test
    0x555555558000     0x555555559000 rw-p     1000   3000 /home/l/c++/test
    0x7ffff7d86000     0x7ffff7d89000 rw-p     3000      0 [anon_7ffff7d86]
pwndbg> x/20gx 0x555555558000+0x14
0x555555558014 <static_var.1>:  0x0000000000000055      0x0000000000000000
0x555555558024: 0x0000000000000000      0x0000000000000000
0x555555558034: 0x0000000000000000      0x0000000000000000
0x555555558044: 0x0000000000000000      0x0000000000000000
0x555555558054: 0x0000000000000000      0x0000000000000000
0x555555558064: 0x0000000000000000      0x0000000000000000
0x555555558074: 0x0000000000000000      0x0000000000000000
0x555555558084: 0x0000000000000000      0x0000000000000000
0x555555558094: 0x0000000000000000      0x0000000000000000
0x5555555580a4: 0x0000000000000000      0x0000000000000000


符号表中符号可以大致分为如下几类

（真实性有待商榷，没有链接器的实现基础）

• 能被外部引用的，无static关键字修饰的全局符号
• static修饰的符号
• 本程序引用的外部符号，如本程序的printf函数
• 段名

一些杂记

c++中会支持函数重载，也就是同名函数会经过其所在类，命名空间，参数类型，符号类型等再次修饰，导致虽然变量名一样但是其实编译之后是不一样的，所以可以支持这个特性，但是问题是，若想要c++兼容c库就不是那么好办了，c中没有此特性，因此c++中使用c库的函数声明就会被重载，导致符号位定义错误，具体如下：

extern “C”

/*c的库文件貌似适配做的很好，如果直接包含c库文件是不会出现这个问题的，就当是一个小知识吧*/
extern int printf(const char* format, ...);
int main(int argc, char const *argv[])
{
    printf("hh");
    return 0;
}
会出现：
root@L:/home/l/c++# g++ extern.cpp -o ex
/usr/bin/ld: /tmp/cctEKkS7.o: in function `main':
extern.cpp:(.text+0x23): undefined reference to `printf(char const*, ...)'
collect2: error: ld returned 1 exit status
如果这样就会告诉编译器不会命名修饰，因此可以编译成功
extern "C" int printf(const char* format, ...);
int main(int argc, char const *argv[])
{
    printf("hh");
    return 0;
}

强弱符号与强弱引用

强弱符号可以解决同名冲突的问题，若遇上同名的定义符号，优先使用强符号，注意是对定义而言，而非引用（声明）。

int printf(const char* format, ...);
extern int ext;
int weak;
int strong = 1;
__attribute__((weak)) int weak2 = 2;
int week2 = 3;

int main ()
{
    printf("%d",week2);
    return 0;
}
root@L:/home/l/c++# ./strong
3

强引用弱引用则是可以当外部引用找不到定义的时候不报错，增加了程序的容错性。

但是注意执行的时候还是会报错，call的时候会把一个无效地址给rip，导致segment fault（非法地址访问）

__attribute__((weak)) int foo();
extern int ext;
int weak;
int strong = 1;
__attribute__((weak)) int weak2 = 2;
int week2 = 3;

int main ()
{
    foo();
    return 0;
}
root@L:/home/l/c++# gcc strong.c -o strong
root@L:/home/l/c++#
